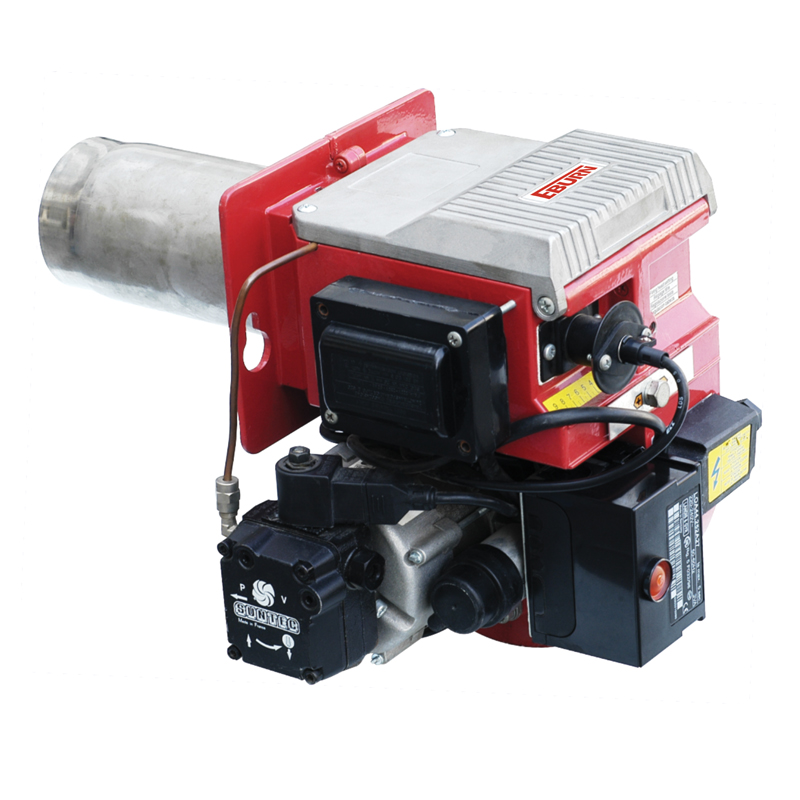

Light Oil Burner One-Stage One Stage (Refractory type)

$Light Oil Burner One-Stage One Stage (Refractory type) Featured Image$

$Light Oil Burner One-Stage One Stage (Refractory type)$

Short Description:

M-ST120, M-K10KLF, M-8SLF, M-12SLF

The M series burners, the Mechanical &Electrical Integration burners which extensive use the steam boilers, heating water boilers, heat conducting oil stove, direct-fired generator, lithium bromide air-conditioning plant and other industrial heating and parch stove equipments, are designed by advanced combustion technology in the world and consult the EN267 Standard and the national interr- elated standard.

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Port: Shanghai

Payment Terms: L/C,D/A,D/P,T/T

Send email to us Download as PDF

Product Detail

Product Tags

Technical data

Model	Output max.			Output min.	Flow rate max.	Flow rate min.	Power supply	Motor	Packing Size	weight
Model	KW	Kcal/h×10*4	KW	Kcal/h×10*4	Kg/h	Kg/h	V	KW	L P H mm	Kg
M-ST120	66	6	24	3	5.6	2	230V/50Hz	0.11	450×340×270	12.5
M-K10KLF	119	10	59	5	10	5		0.11	450×340×270	12.5
M-8SLF	95	8	47	4	8	4		0.11	400×360×250	10
M-12SLF	140	12	70	6	12	6		0.13	400×360×250	12

Curve Diagram

164315

Overall Dimensions

4459

Model	A	B	C	D	E	F	L mmThe size between the installation holes		Nφmm	M	NO .
Model	Widthmm	Heightmm	Lengthmm	Length of blast tubemm	φmmHead diameter	φmmCylinder diameter	min	max	Nφmm	M	NO .
M-K10KL	300	230	400	105	90	90	130	155	95	M8	1
M-8SL	330	220	220	120	89	89	130	155	95	M8	1
M-12SL	330	220	220	140	89	89	130	155	95	M8	1
M-3L	250	217.5	330	90	80	80	135	160	90	M8	1
M-6L	245	270	455	150	90	90	130	155	100	M8	1
M-10L	245	270	480	130	95	95	130	155	100	M8	1
M-14L	360	275	415	110	95	95	130	155	105	M8	2
M-14LW	380	275	415	110	95	95	130	155	130	M8	2
M-18L	360	355	650	117	118	114	170	206	130	M10	2
M-26L	450	355	650	139	135	114	170	206	150	M10	2
M-34L	480	380	740	380	150	135	200	244	165	M12	2
M-35L	450	372.5	780	350	150	135	200	244	165	M12	2
M-40L	525	430	985	305	170	135	200	244	180	M12	2
M-55L	600	500	1170	400	170	135	200	244	180	M12	2
*M-75L	630	510	1200	400	205	160	233		180	M12	3
M-100L	640	525	1295	400	230	195	276		240	M16	3
M-120L	685	610	1400	400	230	195	276		240	M16	3
M-180L	785	650	1645	535	260	220	339		270	M16	3
M-250L	915	780	1665	590	260	220	339		270	M16	3
M-300L	915	840	1860	605	360	275	480	510	380	M20	5
M-350L	1050	920	1960	560	360	275	480	510	380	M20	5

“W” With waterproof cover
“N”means the size of the hole on the chamber.
When“E”is greater than“N”,besides without furance door on this boiler,please open the hole“N”greater than “E”and need one extravagant flange to install the burner. Contact sell office if need any more details.
