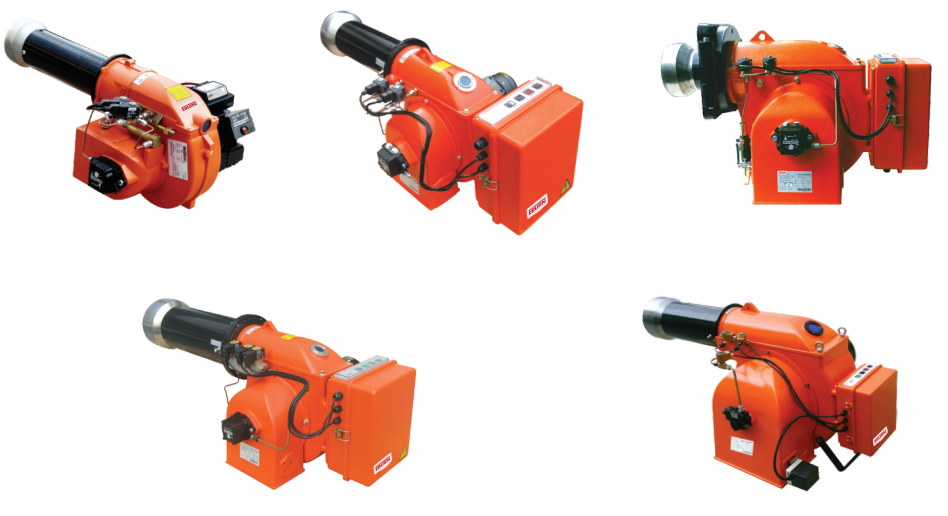

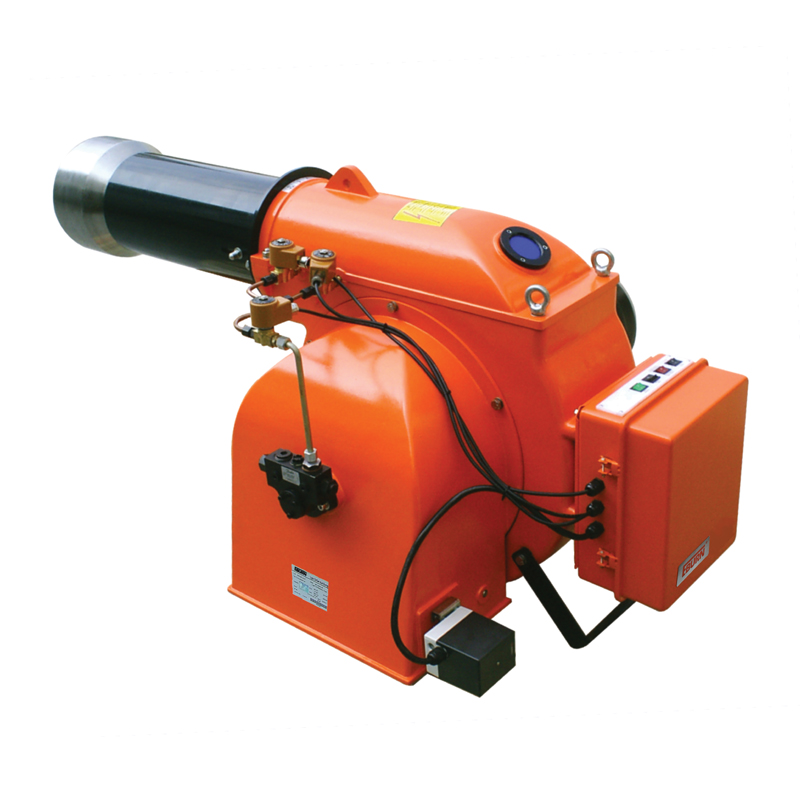

Light Oil Burner Two-Stage

Short Description:

M-14LRF, M-14LRFW, M-26LRF, M-35LRF, M-34LRF, M-40LRF, M-55LRF, M-75LRF, M-100LRF, M-120LRF, M-180LRF, M-250LRF, M-300LRF, M-350LRF

The M series burners, the Mechanical &Electrical Integration burners which extensive use the steam boilers, heating water boilers, heat conducting oil stove, direct-fired generator, lithium bromide air-conditioning plant and other industrial heating and parch stove equipments, are designed by advanced combustion technology in the world and consult the EN267 Standard and the national interr- elated standard.


  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shanghai
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    33141

    Technical data

    Model Output max. Output min. Flow rate max. Flow rate min. Power supply Motor Packing Size weight
    KW   Kcal/h×104 KW    Kcal/h×104

    Kg/h

    Kg/h

    V KW L×P×H mm

    Kg

    M-14LRF 172 14 89 7.5

    14

    7.5

    230V/50Hz 0.15 470×455×340

    16

    M-14LRFW* 172 14 89 7.5

    14

    7.5

    0.15 480×455×340

    18

    M-26LRF 308 26 154 13

    26

    13

    0.37 740×520×380

    30

    M-35LRF 391 34 178 15

    34

    15

    0.37 805×520×405

    32

    M-34LRF 355 34 155 13

    34

    13

    380V/50Hz 0.37 905×520×405

    32

    M-40LRF 534 42 237 20

    42

    20

    0.37 1100×600×450

    57

    M-55LRF 652 55 332 28

    55

    28

    1.1 1250×700×520

    66

    M-75LRF 889 75 415 35

    75

    35

    1.1 1350×700×550

    70

    M-100LRF 1186 100 533 45

    100

    45

    1.5 1350×700×550

    91

    M-120LRF 1660 130 474 40

    130

    40

    2.2 1400×800×620

    150

    M-180LRF 2135 180 712 61

    180

    61

    3 1600×1030×800

    180

    M-250LRF 3186 240 873 75

    240

    75

    7.5 1600×1030×800

    225

    M-300LRF 3854 320 1304 110

    320

    110

    7.5 2000×1030×800

    265

    M-350LRF 4151 360 1364 120

    360

    120

    9 2160×1200×950

    310

    * With waterproof cover

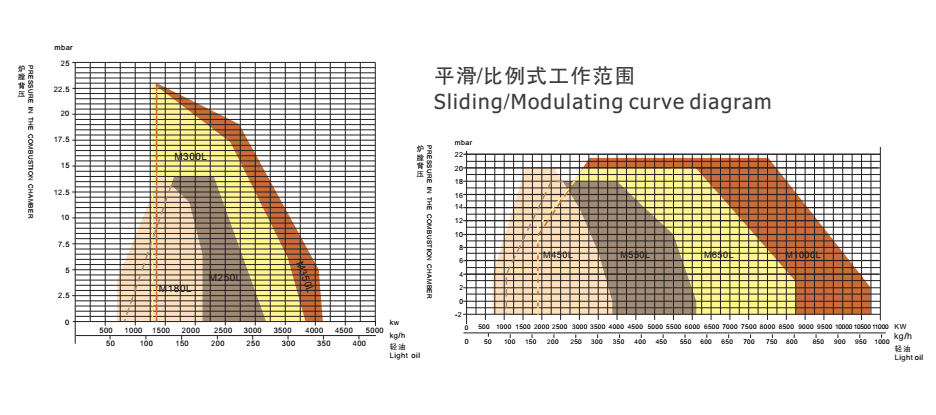

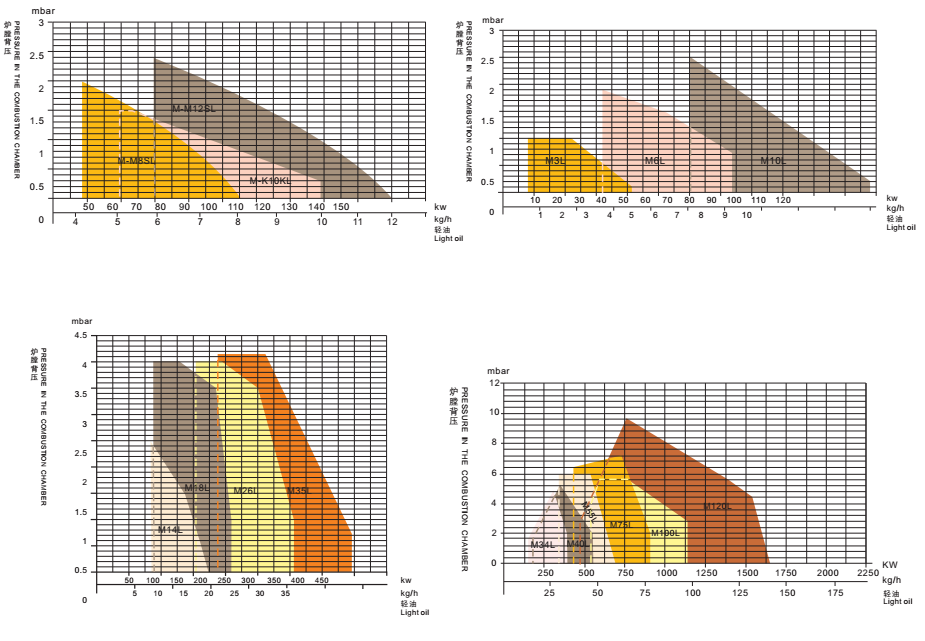

    Curve Diagram

    15

    164315

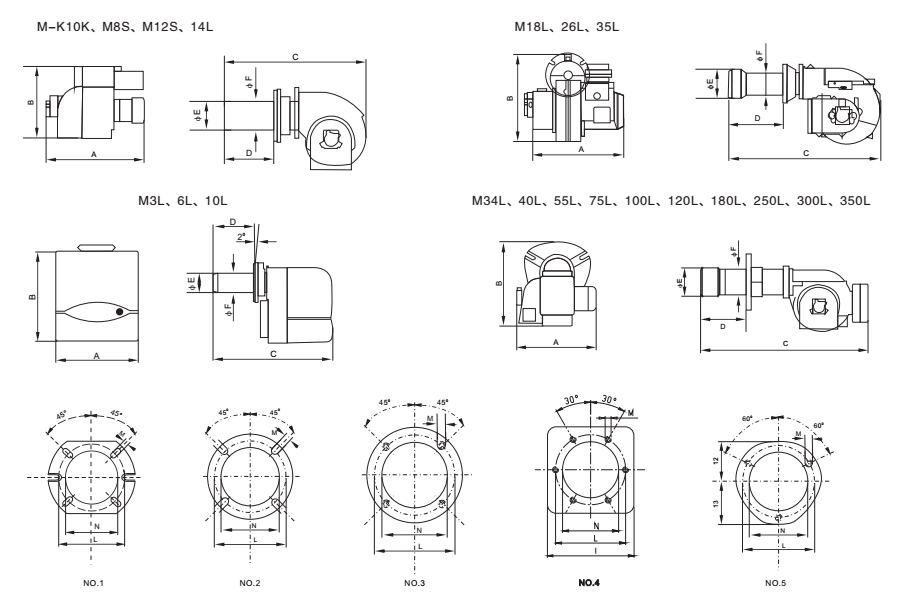

    Overall Dimensions

    4459



    Model A

    B

    C D E

    F

    L mmThe size between the installation holes Nφmm M NO .
    Widthmm Heightmm Lengthmm Length of blast
    tubemm
    φmmHead diameter φmmCylinder
    diameter
    min max
    M-K10KL 300

    230

    400 105 90

    90

    130 155 95 M8

    1

    M-8SL 330

    220

    220 120 89

    89

    130 155 95 M8

    1

    M-12SL 330

    220

    220 140 89

    89

    130 155 95 M8

    1

    M-3L 250

    217.5

    330 90 80

    80

    135 160 90 M8

    1

    M-6L 245

    270

    455 150 90

    90

    130 155 100 M8

    1

    M-10L 245

    270

    480 130 95

    95

    130 155 100 M8

    1

    M-14L 360

    275

    415 110 95

    95

    130 155 105 M8

    2

    M-14LW 380

    275

    415 110 95

    95

    130 155 130 M8

    2

    M-18L 360

    355

    650 117 118

    114

    170 206 130 M10

    2

    M-26L 450

    355

    650 139 135

    114

    170 206 150 M10

    2

    M-34L 480

    380

    740 380 150

    135

    200 244 165 M12

    2

    M-35L 450

    372.5

    780 350 150

    135

    200 244 165 M12

    2

    M-40L 525

    430

    985 305 170

    135

    200 244 180 M12

    2

    M-55L 600

    500

    1170 400 170

    135

    200 244 180 M12

    2

    *M-75L 630

    510

    1200 400 205

    160

    233 180 M12

    3

    M-100L 640

    525

    1295 400 230

    195

    276 240 M16

    3

    M-120L 685

    610

    1400 400 230

    195

    276 240 M16

    3

    M-180L 785

    650

    1645 535 260

    220

    339 270 M16

    3

    M-250L 915

    780

    1665 590 260

    220

    339 270 M16

    3

    M-300L 915

    840

    1860 605 360

    275

    480 510 380 M20

    5

    M-350L 1050

    920

    1960 560 360

    275

    480 510 380 M20

    5

    “W” With waterproof cover
    “N”means the size of the hole on the chamber.
    When“E”is greater than“N”,besides without furance door on this boiler,please open the hole“N”greater than “E”and need one extravagant flange to install the burner. Contact sell office if need any more details.
