100% Original Factory Gas Fuel Burner - Dual Fuel Burner Light Oil/Gas Sliding/Modulating Light oil /Gas Burner M180/250/350 /600/450/550/850/1000 GL S/M – EBURN

Technological performance and structural descriptions

1.Alternate methane gas/light oil burner.
2.Two-stage progressive output operation.
3.Air-gas mixing at blast-pipe and high pressure mechanical atomisation of fuel using nozzle.
4.Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
5.Maintenance facilitated by the fact that the mixing unit and the atomisation unit can be removed without having to remove the burner from the boiler.
6.Minimum and maximum air flow regulation for first and second stage by means of electric servomotor with pause closure of gate to prevent any heat dispersion to flue.
7.The servo motor which fixed with a cam can adjust the consumption for fuel and air.to prevent any heat dispersion to flue.
8.”Equipped with one flange and one insulating seal for boiler fastening.
9.Combustion air intake with air flow adjustment device.
10.Sliding boiler coupling flange to adapt to head protrusion
of the various types of boilers.
11.Adjustable blast-pipe with stainless steel nozzle and deflector disk in steel.
12.A three-phase electric motor to run fan and another to run the pump.
13.Flame presence check by UV photo-electric cell.
14.Electrical plant protection rating Ip40.

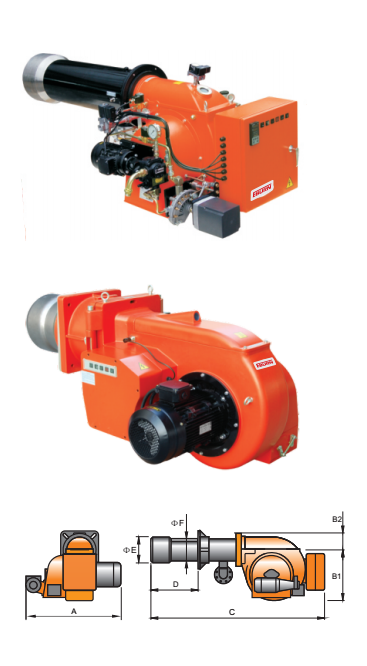

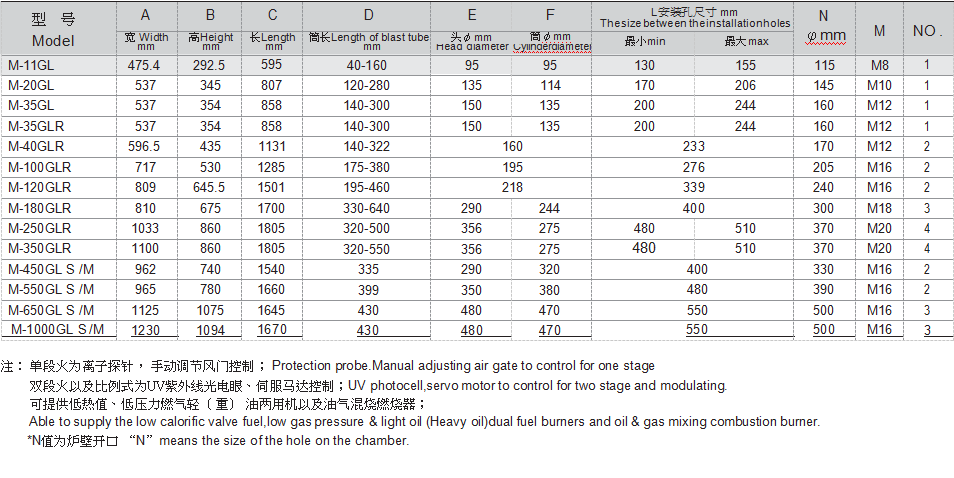

Overall dimensions
