| Model |
E@20℃ |
Power KW |
kg/h |
Combustion Type |
Moto KW | photocell |
Power |
| M-G5 |
1.5 |
28-60 |
2.3-5 |
ON/OFF |
0.09 |
40G |
230V / 50Hz |
| *M-G5LC |
1.5 |
28-60 |
2.3-5 |
ON/OFF |
0.09 |
40G |
230V / 50Hz |
| M-G10 |
1.5 |
54-120 |
4.5-10 |
ON/OFF |
0.09 |
40G |
230V / 50Hz |
| *M-G10LC |
1.5 |
54-120 |
4.5-10 |
ON/OFF |
0.09 |
40G |
230V / 50Hz |
| M-G20 |
1.5 |
95-213 |
8-18 |
ON/OFF |
0.15 |
40G |
230V / 50Hz |
| *M-G20LC |
1.5 |
95-213 |
8-18 |
ON/OFF |
0.15 |
40G |
230V / 50Hz |
| M-G20S |
1.5 |
95-240 |
8-20 |
ON/OFF |
0.15 |
40G |
230V / 50Hz |

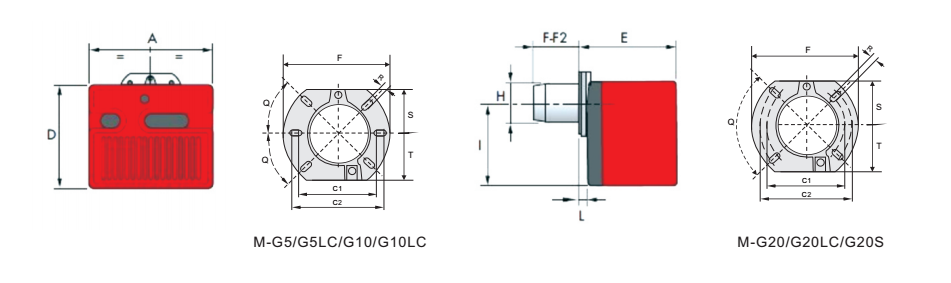

Burner size chart
| Model |
A |
D |
E |
F |
F2 |
H |
I |
L |
C1 |
C2 |
F |
Q |
R |
S |
T |
| M-G5 |
272 |
233 |
236 |
107 |
- |
89 |
180 |
37 |
130 |
150 |
180 |
45 |
11 |
72 |
75 |
| M-G5LC |
272 |
233 |
236 |
107 |
- |
89 |
180 |
37 |
130 |
150 |
180 |
45 |
11 |
72 |
75 |
| M-G10 |
305 |
262 |
261 |
108 |
- |
105 |
204 |
40 |
140 |
170 |
189 |
45 |
11 |
83 |
83 |
| M-G10LC |
305 |
262 |
261 |
108 |
- |
105 |
204 |
40 |
140 |
170 |
189 |
45 |
11 |
83 |
83 |
| M-G20 |
350 |
298 |
295 |
118 |
- |
125 |
230 |
41 |
160 |
190 |
213 |
90 |
11 |
99 |
99 |
| M-G20LC |
350 |
298 |
295 |
118 |
- |
125 |
230 |
41 |
160 |
190 |
213 |
90 |
11 |
99 |
99 |
| M-G20S |
350 |
298 |
295 |
118 |
- |
125 |
230 |
41 |
160 |
190 |
213 |
90 |
11 |
99 |
99 |
*LC为无自动液压风门
