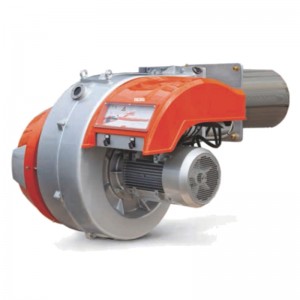

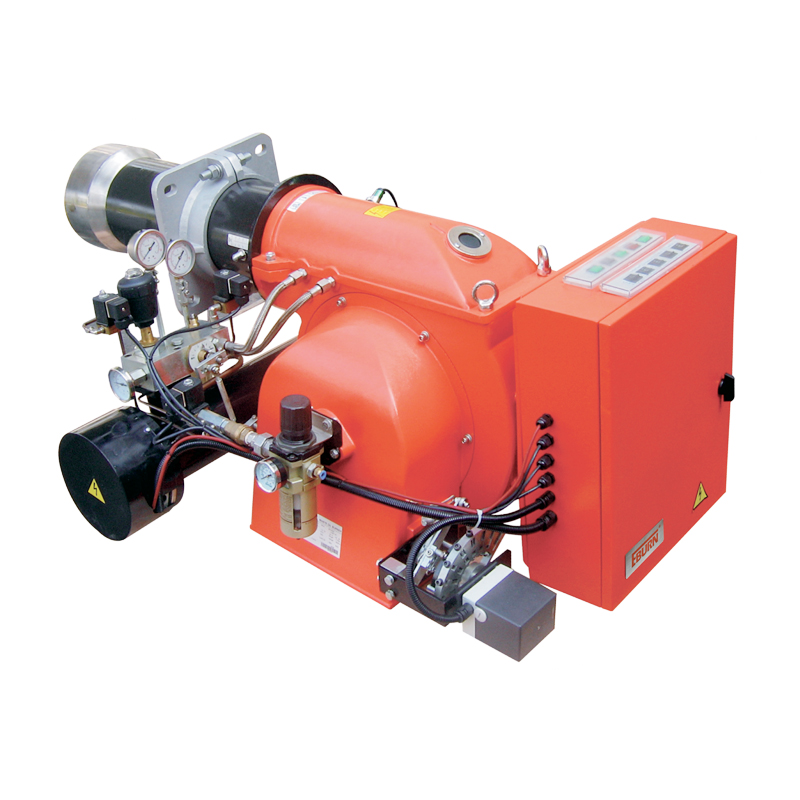

Gas Burner Sliding/Modulating

Short Description:

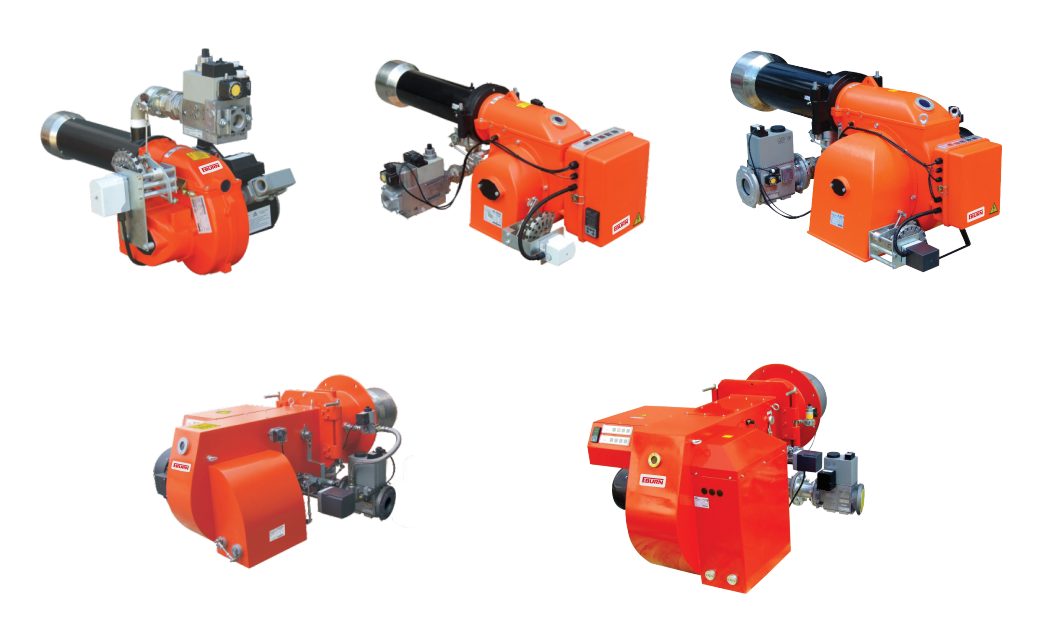

M-17GS/M, M-35GS/M, M-40GS/M, M-60GS/M, M-100GS/M, M-120GS/M, M-150GS/M, M-200GS/M, M-250GS/M, M-350GS/M, M-400GS/M, M-450GS/M, M-550GS/M, M-650GS/M, M-1000GS/M

The M series burners, the Mechanical &Electrical Integration burners which extensive use the steam boilers, heating water boilers, heat conducting oil stove, direct-fired generator, lithium bromide air-conditioning plant and other industrial heating and parch stove equipments, are designed by advanced combustion technology in the world and consult the EN267 Standard and the national interr- elated standard.


  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shanghai
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    13140606

    Technical data

    Model Output max. Output min. Gas pressure gas Power supply Motor Packing Size weight
    KW Kcal/h×104 KW Kcal/h×104

    mbar

    V KW L×P×H mm Kg
    M-17G S/M 168 14.5 50 5

    20-200

    230V/50Hz 0.15 570×465×340 18
    M-35G S/M 340 30 60 6

    20-200

    0.37 990×550×450 50
    M-40G S/M 425 36.5 185 16

    20-300

    380V/50Hz 0.37 900×650×450 80
    M-60G S/M 738 63.5 248 21.4

    30-300

    1.1

    1000×760×550

    118
    M-100G S/M 995 85 280 24

    30-300

    1.1

    1000×760×550

    120
    M-120G S/M 1200 105 350 30

    30-300

    1.5

    1050×850×580

    130
    M-150G S/M 1428 123 414 35.7

    30-300

    2.2 1150×850×650 154
    M-200G S/M 2000 172.5 490 42.2

    40-300

    3.0

    1400×1080×800

    320
    M-250G S/M 2500 215.5 590 50.8

    40-300

    7.5

    1400×1080×800

    330
    M-350G S/M 3500 300 924 79.7

    40-300

    7.5

    1500×1080×800

    340
    M-400G S/M 3800 327 924 79.7

    40-300

    9.0

    1500×1080×800

    360
    M-450G S/M 4000 345 550 48

    40-500

    9

    1700×1100×850

    228
    M-550G S/M 5400 465 600 52

    50-500

    13.5

    1800×1250×850

    230
    M-650G S/M 7400 638 800 69

    100-500

    18.5

    2200×1300×1300

    330
    M-1000G S/M 10500 905 1000 86

    100-500

    22

    2200×1300×1300

    335

    Sliding:the servo motor moves the cam to control the butterfly valve.
    Modulating:Install PID adjusting controller with digital display.
    Fuel:/Natural Gas (L.C.V 8570kcal/Nm3)
    LPG (L.C.V 22260kcal/Nm3)

    Sliding/Modulating curve diagram

    3727

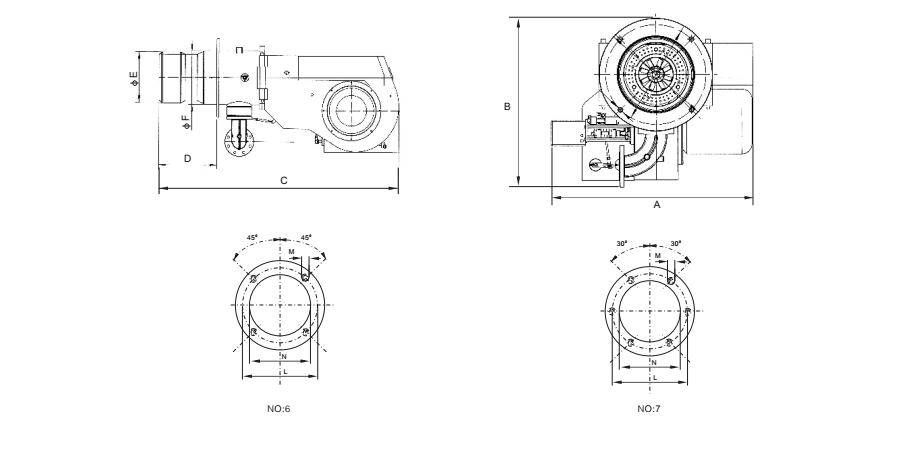

    Overall dimensions

    1753

    856

    Model A B C D E F L mm The size between the installation holes Nφmm M NO .
    Width mm Height mm Length mm Length of blast tube mm φmm Head diameter φmm Cylinderdiameter
    M-450GS /M 962 740 1540 335 290 320

    400

    330 M16 1
    M-550GS /M 965 780 1660 399 350 380

    480

    390 M16 1
    M-650GS /M 1125 1075 1645 430 480 470

    550

    500 M16 2
    M-1000GS /M 1230 1094 1670 430 480 470

    550

    500 M16 2

    “N”means the size of the hole on the chamber.

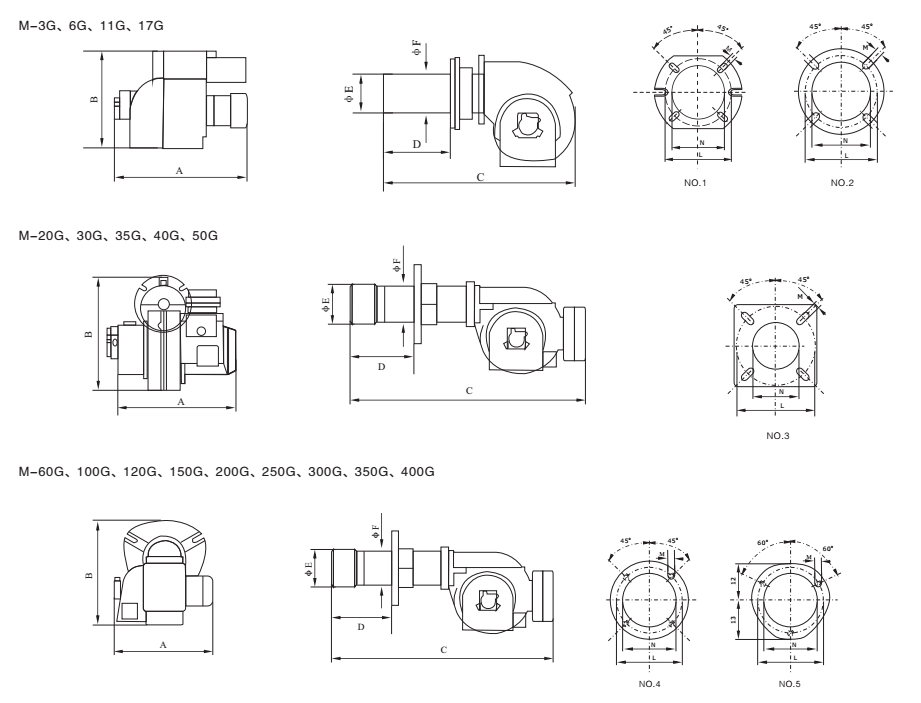

    Model A B C D E

    F

    L mmThe size between the installation holes Nφmm M NO .
    Widthmm Heightmm Lengthmm Length of
    blast tubemm
    φmmHead
    diameter
    φmmCylinder
    diameter
    min 最大max
    M-3G 245 270 410 50-105 90

    90

    130 155 95 M8

    1

    M-6G 245 271.5 410 50-105 90

    90

    130 155 100 M8

    1

    M-11G M-11TG 245 271.5 475 90-150 108

    90

    130 155 120 M8

    1

    M-17G M-17TG 350 350 650 80-200 108

    95

    130 155 120 M8

    2

    M-20G 475 365 740 120-280 135

    114

    170 206 140 M10

    3

    M-30G M-30TG 475 365 835 170-300 135

    135

    200 244 145 M12

    3

    M-35G M-35TG 475 365 925 130-350 155

    135

    200 244 165 M12

    3

    M-40G M-40TG 470 397 1100 150-330 155

    135

    200 244 165 M12

    3

    M-50G 475 397 1150 150-350 155

    135

    200 244 165 M12

    3

    *M-60G *M-60TG 560 485 1270 170-400 205

    160

    233 190 M12

    4

    *M-100G 560 485 1330 240-460 230

    160

    233 190 M12

    4

    *M-100TG 560 485 1330 220-440 270 195 276 220 M16

    4

    *M-120G 590 500 1400
    *M-150G 655 587 1500 220-440 270

    195

    276 220 M16

    4

    *M-150TG 655 587 1500 300-600 320 220 339 240 M16

    4

    *M-200G 830 730 1850
    *M-250G 875 730 1850 300-600 320

    220

    339 240 M16

    4

    M-250TG 875 730 1850 275-450 356 275 480 510 390 M20

    5

    M-300G 875 757 1850
    M-350G 880 757 1850 275-450 356

    275

    480 510 390 M20

    5

    M-400G 880 760 1850 275-450 356

    275

    480 510 390 M20

    5

    “N”means the size of the hole on the chamber.
    When“E”is greater than“N”,besides without furance door on this boiler,please open the hole“N”greater than “E”and need one extravagant flange to install the burner. Contact sell office if need any more details.
