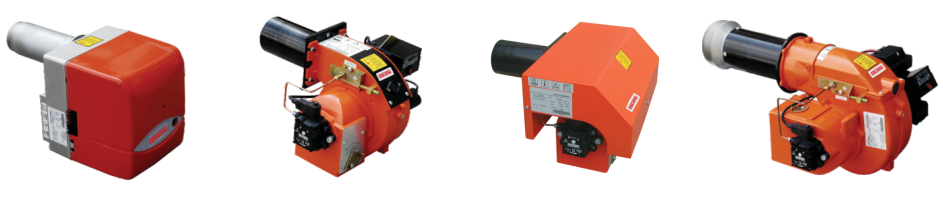

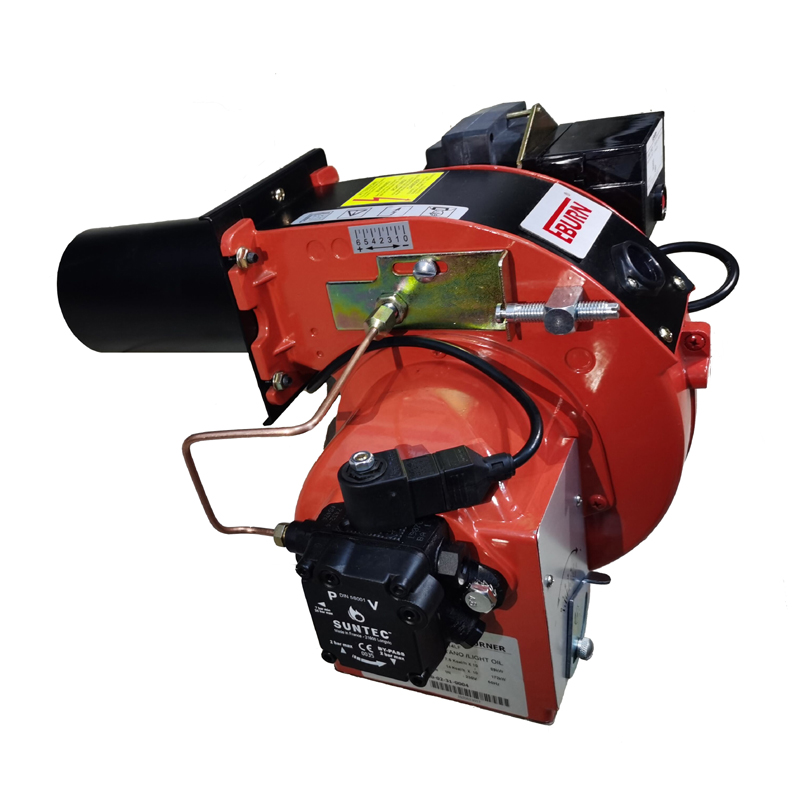

Light Oil Burner One-Stage

Short Description:

The M series burners, the Mechanical &Electrical Integration burners which extensive use the steam boilers, heating water boilers, heat conducting oil stove, direct-fired generator, lithium bromide air-conditioning plant and other industrial heating and parch stove equipments, are designed by advanced combustion technology in the world and consult the EN267 Standard and the national interr- elated standard.


  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shanghai
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    14033

    Technical data

    Mode Output max Output min. Flow rate max. Flow rate min. Power supply Motor Packing Size weight
    KW Kcal/h×10 4 KW Kcal/h×104 Kg/h Kg/h V KW L×P×H mm Kg
    M-3LF 42.7 3 8 0.65 3 0.65 230V/50Hz 0.09 490×300×320 10
    M-6LF 74.3 6 31.9 2.75 6 3 0.11 490×300×320 12
    M-10LF 118 10 60 5 10 5 0.11 490×300×320 12
    M-14LF 172 14 89 7.5 14 7.5 0.15 470×455×340 15
    M-14LFW* 172 14 89 7.5 14 7.5 0.15 480×455×340 17.5
    M-18LF 213 18 90 8 18 8 0.37 650×520×385 23
    M-26LF 308 26 154 13 26 13 0.37 650×520×385 23
    M-35LF 391 34 178 15 34 15 0.37 805×525×405 26
    M-40LF 474 40 237 20 40 20 380V/50Hz 0.37 1100×600×450 54

    *  With waterproof cover

    Curve Diagram

    15

    164315

    Overall Dimensions

    4459



    Model A

    B

    C D E

    F

    L mmThe size between the installation holes Nφmm M NO .
    Widthmm Heightmm Lengthmm Length of blast
    tubemm
    φmmHead diameter φmmCylinder
    diameter
    min max
    M-K10KL 300

    230

    400 105 90

    90

    130 155 95 M8

    1

    M-8SL 330

    220

    220 120 89

    89

    130 155 95 M8

    1

    M-12SL 330

    220

    220 140 89

    89

    130 155 95 M8

    1

    M-3L 250

    217.5

    330 90 80

    80

    135 160 90 M8

    1

    M-6L 245

    270

    455 150 90

    90

    130 155 100 M8

    1

    M-10L 245

    270

    480 130 95

    95

    130 155 100 M8

    1

    M-14L 360

    275

    415 110 95

    95

    130 155 105 M8

    2

    M-14LW 380

    275

    415 110 95

    95

    130 155 130 M8

    2

    M-18L 360

    355

    650 117 118

    114

    170 206 130 M10

    2

    M-26L 450

    355

    650 139 135

    114

    170 206 150 M10

    2

    M-34L 480

    380

    740 380 150

    135

    200 244 165 M12

    2

    M-35L 450

    372.5

    780 350 150

    135

    200 244 165 M12

    2

    M-40L 525

    430

    985 305 170

    135

    200 244 180 M12

    2

    M-55L 600

    500

    1170 400 170

    135

    200 244 180 M12

    2

    *M-75L 630

    510

    1200 400 205

    160

    233 180 M12

    3

    M-100L 640

    525

    1295 400 230

    195

    276 240 M16

    3

    M-120L 685

    610

    1400 400 230

    195

    276 240 M16

    3

    M-180L 785

    650

    1645 535 260

    220

    339 270 M16

    3

    M-250L 915

    780

    1665 590 260

    220

    339 270 M16

    3

    M-300L 915

    840

    1860 605 360

    275

    480 510 380 M20

    5

    M-350L 1050

    920

    1960 560 360

    275

    480 510 380 M20

    5

    “W” With waterproof cover
    “N”means the size of the hole on the chamber.
    When“E”is greater than“N”,besides without furance door on this boiler,please open the hole“N”greater than “E”and need one extravagant flange to install the burner. Contact sell office if need any more details.
