Fast delivery Metal Gas Filter - Gas Burner Two-Stage – EBURN

Short Description:


Product Detail

Product Tags

Related Video

Feedback (2)

, , ,
Fast delivery Metal Gas Filter - Gas Burner Two-Stage – EBURN Detail:

51

Technical data

 Model Output max. Output min. Gas pressure gas Power supply Motor Packing Size weight
KW Kcal/h×104 KW Kcal/h×104

mbar

V KW L×P×H mm Kg
M-17GRF 168 14.5 69 6

20-200

230V/50Hz 0.15

580×460×340

15
M-20GRF 200 17.2 50 5

20-200

0.37

840×530×450

27
M-30GRF 300 25.9 60 5.2

20-200

0.37

940×540×450

43
M-35GRF 358 30.9 90 7.8

20-200

0.37

990×540×450

46
M-40GRF 425 36.6 185 16

30-300

380V/50Hz 0.37

900×650×450

76
M-60GRF 738 63.6 248 21.4

30-300

1.1

1000×760×550

108
M-100GRF 995 85.8 280 24

30-300

1.1

1000×760×550

110
M-120GRF 1200 103.5 350 30

30-300

1.5

1050×850×580

120
M-150GRF 1428 123 414 35.7

30-300

2.2

1150×850×650

144
M-200GRF 2000 175 490 42

40-300

3.0

1400×1080×800

306
M-250GRF 2500 220 590 50.9

40-300

7.5

1400×1080×800

310
M-300GRF 2982 257 657 57

40-300

7.5

1500×1080×800

324
M-350GRF 3500 300 924 80

40-300

7.5

1500×1080×800

330
M-400GRF 3950 340 924 80

40-300

9.0

1500×1080×800

350

One/two stage curve diagram

1639

Overall dimensions

1753

856

Model A B C D E F L mm The size between the installation holes Nφmm M NO .
Width mm Height mm Length mm Length of blast tube mm φmm Head diameter φmm Cylinderdiameter
M-450GS /M 962 740 1540 335 290 320

400

330 M16 1
M-550GS /M 965 780 1660 399 350 380

480

390 M16 1
M-650GS /M 1125 1075 1645 430 480 470

550

500 M16 2
M-1000GS /M 1230 1094 1670 430 480 470

550

500 M16 2

“N”means the size of the hole on the chamber.

Model A B C D E

F

L mmThe size between the installation holes Nφmm M NO .
Widthmm Heightmm Lengthmm Length of
blast tubemm
φmmHead
diameter
φmm
Cylinder
diameter
min max
M-3G 245 270 410 50-105 90

90

130 155 95 M8

1

M-6G 245 271.5 410 50-105 90

90

130 155 100 M8

1

M-11G M-11TG 245 271.5 475 90-150 108

90

130 155 120 M8

1

M-17G M-17TG 350 350 650 80-200 108

95

130 155 120 M8

2

M-20G 475 365 740 120-280 135

114

170 206 140 M10

3

M-30G M-30TG 475 365 835 170-300 135

135

200 244 145 M12

3

M-35G M-35TG 475 365 925 130-350 155

135

200 244 165 M12

3

M-40G M-40TG 470 397 1100 150-330 155

135

200 244 165 M12

3

M-50G 475 397 1150 150-350 155

135

200 244 165 M12

3

*M-60G *M-60TG 560 485 1270 170-400 205

160

233 190 M12

4

*M-100G 560 485 1330 240-460 230

160

233 190 M12

4

*M-100TG 560 485 1330 220-440 270 195 276 220 M16

4

*M-120G 590 500 1400
*M-150G 655 587 1500 220-440 270

195

276 220 M16

4

*M-150TG 655 587 1500 300-600 320 220 339 240 M16

4

*M-200G 830 730 1850
*M-250G 875 730 1850 300-600 320

220

339 240 M16

4

M-250TG 875 730 1850 275-450 356 275 480 510 390 M20

5

M-300G 875 757 1850
M-350G 880 757 1850 275-450 356

275

480 510 390 M20

5

M-400G 880 760 1850 275-450 356

275

480 510 390 M20

5

“N”means the size of the hole on the chamber.
When“E”is greater than“N”,besides without furance door on this boiler,please open the hole“N”greater than “E”and need one extravagant flange to install the burner. Contact sell office if need any more details.


Product detail pictures:

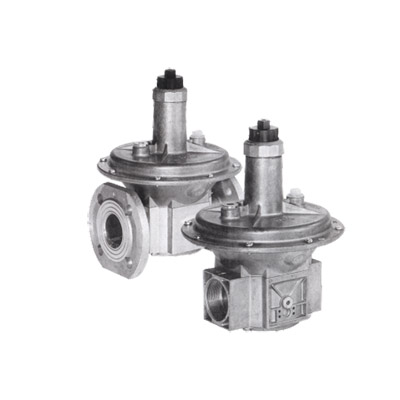

Fast delivery Metal Gas Filter -

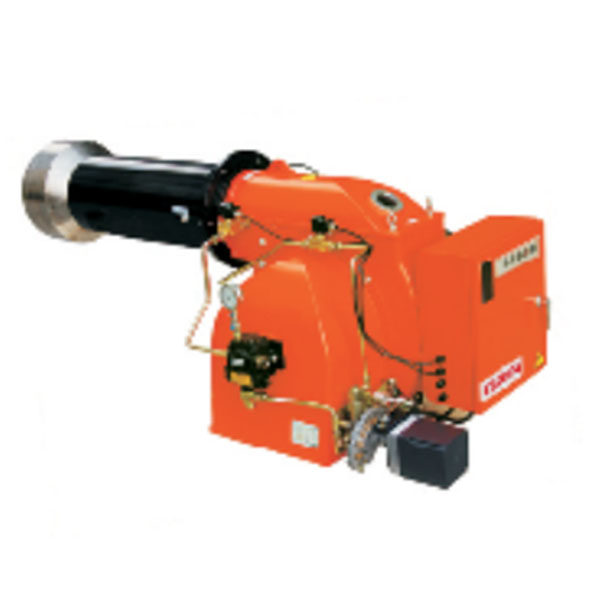

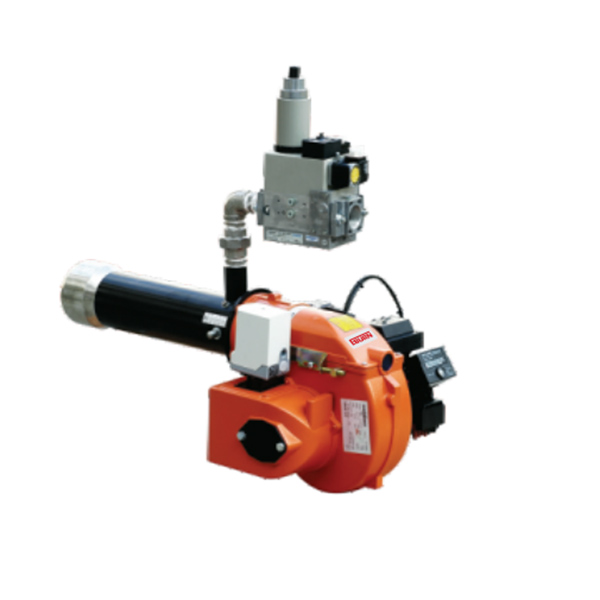

 Gas Burner Two-Stage – EBURN detail pictures
